Type C UAS (Unmanned Aircraft System)

Turnkey system consists of two unmanned aircraft vehicles (UAV), one ground control station (GCS), one ground data terminal (GDT), pneumatic launcher and ground support equipment. Drone, almost imperceptible by any radar. Cannot be destroyed by conventional small arms only with the expensive and precision missiles. Successfully applied in both the military as well as civilian sectors.



Performance

AIRCRAFT SPECIFICATIONS

VALUE

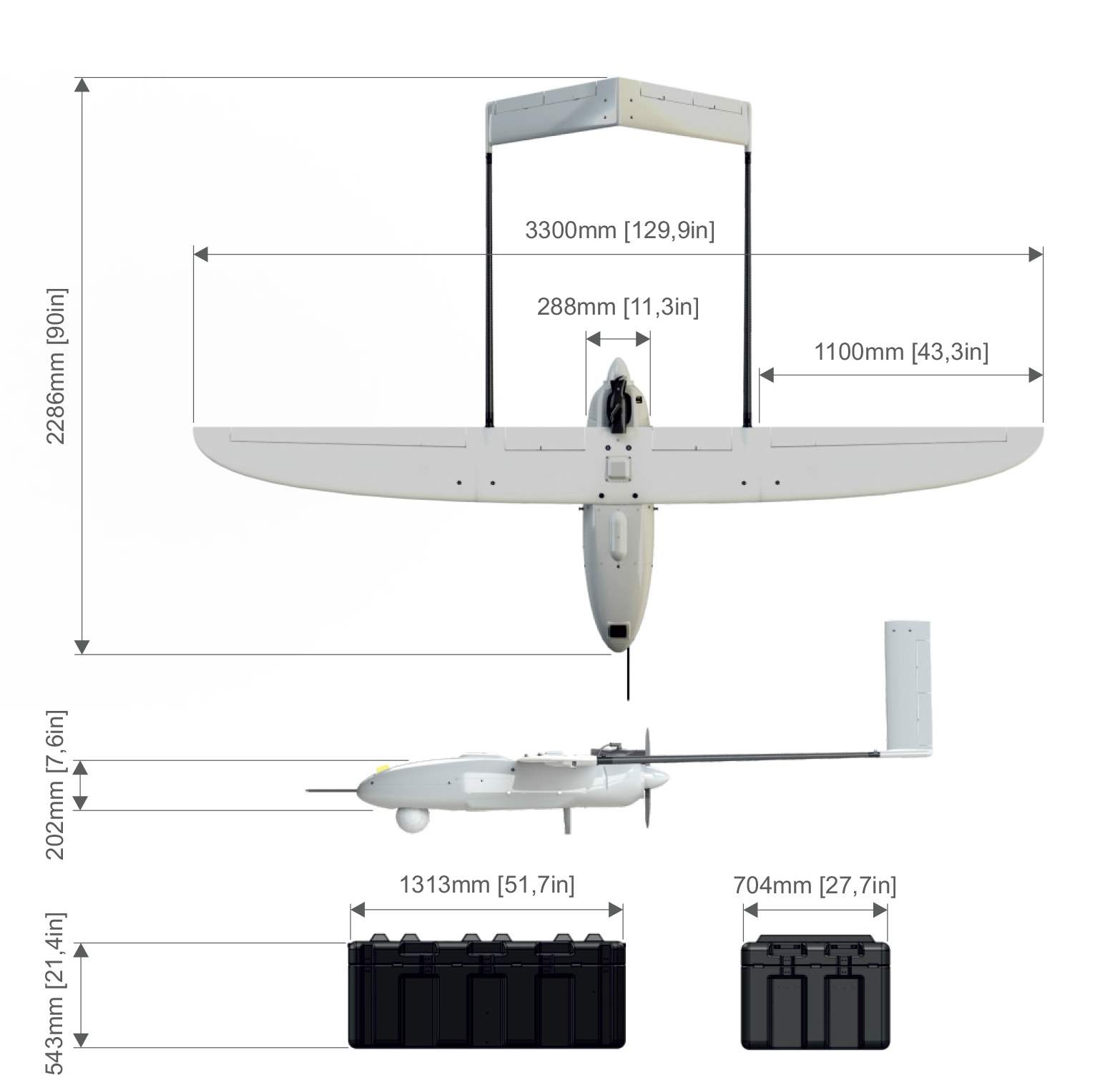

Wingspan

3.3 m/ 10.8 ft

MTOW

21.5 kg / 47.5 lbs.

Endurance

20 hours

Range

100 km/ 60 miles

Cruise speed

19-22 m/s / 37-43 knots

Max level speed

36 m/s / 70 knots

Ceiling

4500 m / 15 000 ft MSL

Takeoff

Pneumatic Catapult, fully autonomous

Maximum takeoff altitude

3000m /10 000 ft AMSL

Recovery

Parachute recovery, airbag

Operational temperature

-10° C to +40° C

Anti- icing measures

Heated Pitot- static tube.
Flight in icing conditions is not approved.

Environmental protection

< 5 millimeters/hour rain

PROPULSION SYSTEM

VALUE

Engine Type

0.79 m2

Powerplant

2.5 hp

Max Payload

10 kg

Takeoff method

Catapult, Runway or car top launch

Environmental protection

Sealed against rain, snow

AIRCRAFT SPECIFICATIONS

VALUE

Engine type

28 cc EFI

Temperature control system

Automatically controlled via mechanical flap

Fuel type

95 Octane, oil mix

Generator system

80W onboard generator system

PAYLOAD SPECIFICATIONS

VALUE

Payload type

Day/night gyro stabilized

EO sensor

Sony FCB

IR sensor

FLIR Tau 640 LWIR Camera

Advanced features

Target tracking, Electronic Stabilization, Scene Steering,
Real-time mosaicking, PathTrack software, Video on the map

Mounting

Motorized retract with anti-vibration damping

DATA LINK SPECIFICATION

VALUE

Datalink

2.4 GHz or 2.3 GHz

Link Rate

Up to 12 Mbps

Encryption

128 bit AES / 256 bit AES

FLIGHT CONTROL SYSTEM

VALUE

Autopilot type

Piccolo, Cloud Cap Technology

GROUND CONTROL STATION

VALUE

Type

Portable, Dual touchscreen displays

Ground control software

Piccolo Command Center, Penguin Copilot

GROUND DATA TERMINAL

VALUE

Type

Tracking high gain directional antenna with
magnetometer

Mounting type

Tripod

CATAPULT SYSTEM

VALUE

Type

Portable pneumatic, 6000 J launch energy

Packed Size



1313 x 704 x 543 mm



Typical fill time

~ 15 min

Packed Weight



110 kg
