PARAMETER	VALUE
MTOW	21.5 kg
Empty Weight (excluding payload)1	14.9 kg
Wing Span	3.3 m
Length	2.27 m
Wing Area	0.79 m2
Propulsion Type	Geared Brushless
Propulsion Power	2700 W
Battery Type	Lithium Polymer
Battery Cartridge Capacity	640 Wh
Onboard Voltage	6V, 12V
Onboard Continuous Power	100 Watts
Max Payload	6.6 kg
Takeoff Method	Catapult, Runway or car top launch
Environmental Protection	Sealed against rain, snow

1 With standard landing gear, with battery cartridge

Performance:

PARAMETER	VALUE
Endurance2	110 minutes with 2.8 kg payload
Cruise Speed	22 m/s
Stall Speed (with high lift system)3	13 m/s
Max Level Speed	36 m/s
Takeoff run4	30 m
CL max (45o flap deflection)	1.7
CL max (clean wing)	1.3
Ceiling	6000 m

2 In belly landing configuration
3 Sea level altitude, 15 kg aircraft weight, 15 C°.
4 Sea level altitude, 15 kg aircraft weight, 15 C°, concrete runway.

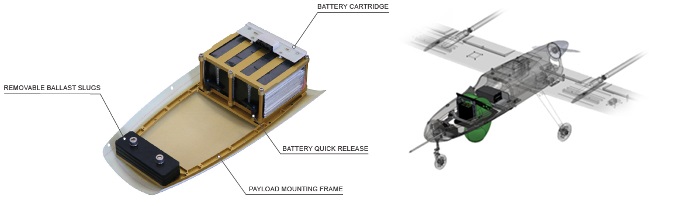

Universal Payload Mount:

Electric BE UAV has a swappable universal payload mount that can be removed in seconds and used for various payloads. Payload mount is inserted from the underneath of the fuselage and includes a large section of the lower fuselage surface to facilitate the installation of the camera gimbal. The most sophisticated payloads such as retractable gimbals can be installed by integrators into the fuselage and utilize the available space efficiently. The universal payload mount has predetermined mounting points that are precisely machined into the aluminum frame as well as removable ballast slugs that will simplify the payload integration process considerably. Due to the compact size of electric propulsion and battery cartridge, there is a large amount of space available for payload integrators. The fuselage is split into two main payload areas – the forward payload bay and the rear payload bay.

Integrators can design custom payload mounts for their payload in CAD software. Fuselage and payload mount CAD models are available to clients.

Drone, almost imperceptible by any radar. Cannot be destroyed by conventional small arms only with the expensive and precision missiles. Successfully applied in both the military as well as civilian sectors.
