Type B UAB

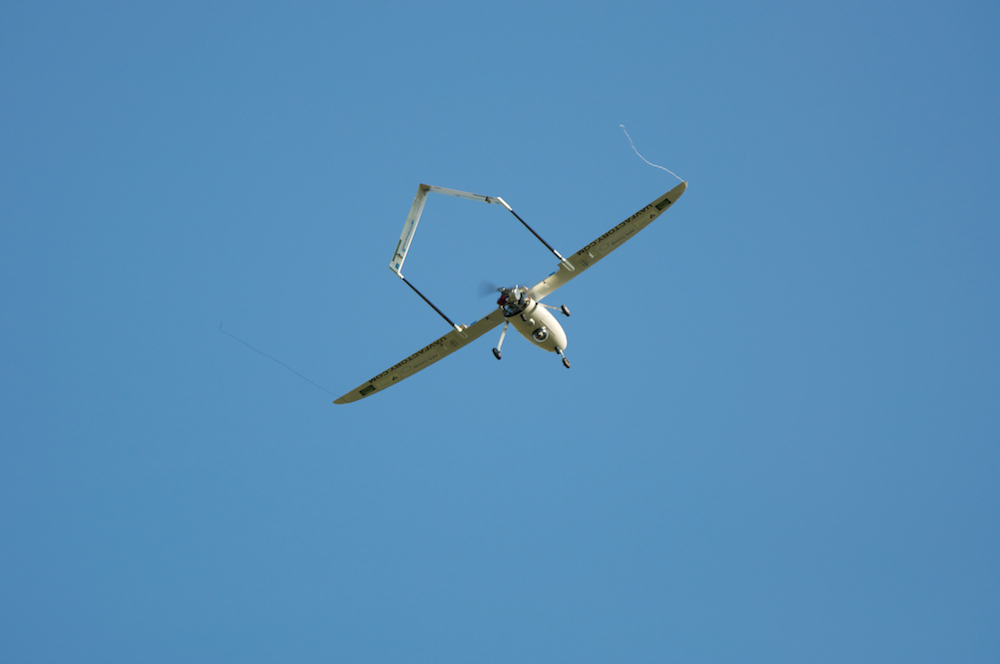

Designed as a high performance unmanned airframe, Type B UAV platform is one of the most capable airframes available today
Performance

PARAMETER

VALUE

MTOW

21.5 kg

Empty Weight (excl fuel and payload)1

10 kg

Wing Span

3.3 m

Length

2.27 m

Wing Area

0.79 m2

Powerplant

2.5 hp

Max Payload

10 kg

Takeoff method

Catapult, Runway or car top launch

Environmental protection

Sealed against rain, snow


1 Type B UAV platform with engine and servo package.

Performance:

PARAMETER VALUE
Endurance2 20+ hours
Cruise Speed 22 m/s
Stall Speed (with high lift system)3 13 m/s
Max Level Speed 36 m/s
Takeoff run4 30 m
CL max (45o flap deflection) 1.7
CL max (clean wing) 1.3
Ceiling 6000 m


2 Type B UAV platform with fuel injected engine and 7500cc fuel tank.
3 Sea level altitude, 15 kg aircraft weight, 15 C°.
4 Sea level altitude, 15 kg aircraft weight, 15 C°, concrete runway.

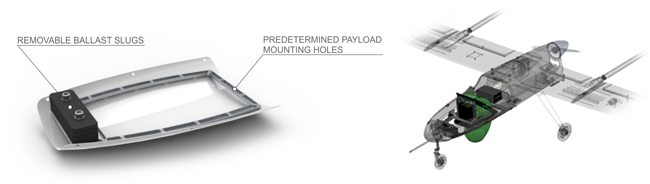

Universal Payload Mount:

Type B UAV platform has a swappable universal payload mount that can be removed in seconds and used for various payloads. The most sophisticated payloads such as retractable gimbals can be installed by integrators into the fuselage and utilize the available space efficiently. The universal payload mount has predetermined mounting points that are precisely machined in aluminum frame as well as removable ballast slugs that will simplify the payload integration process considerably.

Integrators can design custom payload mounts for their payload in CAD software. Fuselage and payload mount CAD models are available to clients.

 Drone, almost imperceptible by any radar. Cannot be destroyed by conventional small arms only with the expensive and precision missiles. Successfully applied in both the military as well as civilian sectors.
